MySQL 主从复制
MySQL 主从复制
概述
安装MySQL
1
2
3
4
5
6
7
8
wget https://dev.mysql.com/get/mysql80-community-release-el7-7.noarch.rpm
yum -y install mysql80-community-release-el7-7.noarch.rpm
yum clean all && yum makecache
yum-config-manager --disable mysql80-community
yum-config-manager --enable mysql57-community
yum repolist enabled | grep mysql
yum -y install mysql-community-server
systemctl enable mysqld --now
配置主从
1
2
3

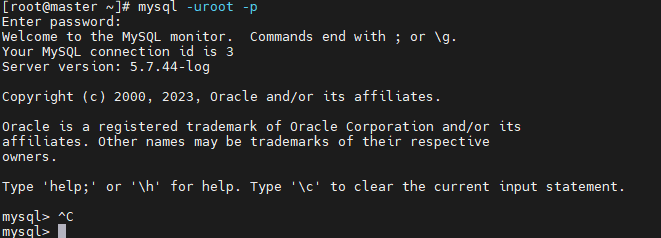

[root@master ~]# mysql --version
[root@master ~]# grep 'password' /var/log/mysqld.log
3. 修改主库配置文件：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
vim /etc/my.cnf
# master增加如下配置
server_id=131 # 需要保证唯一性 不可与其他从服务器相同 如果为0会拒绝所有从服务器连接
log-bin=mysql-bin # 设置同步的binary log二进制日志文件名前缀，默认是binlog
# 可选配置
binlog-format=row # 主从复制的格式（mixed,statement,row，默认格式是statement。建议是设置为row，主从复制时数据更加能够统一）
expire_logs_days = 10 # 二进制日志自动删除/过期的天数。默认值为0，表示不自动删除。
max_binlog_size = 100M # 日志最大大小
binlog_do_db = test # 需要同步的数据库
binlog_ignore_db = mysql # 不需要同步的数据库
# 跳过主从复制中遇到的所有错误或指定类型的错误，避免slave端复制中断。
# 如：1062错误是指一些主键重复，1032错误是因为主从数据库数据不一致
slave_skip_errors=1062
4. 修改从库配置文件：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
# slave增加如下配置
server_id=96 # 需要保证唯一性 不可与其他从服务器相同 如果为0会拒绝所有从服务器连接
log-bin=mysql-bin # 设置同步的binary log二进制日志文件名前缀，默认是binlog
# 可选配置
binlog-format=row # 主从复制的格式（mixed,statement,row，默认格式是statement。建议是设置为row，主从复制时数据更加能够统一）
expire_logs_days = 10 # 二进制日志自动删除/过期的天数。默认值为0，表示不自动删除。
max_binlog_size = 100M # 日志最大大小
binlog_do_db = test # 需要同步的数据库
binlog_ignore_db = mysql # 不需要同步的数据库
# 跳过主从复制中遇到的所有错误或指定类型的错误，避免slave端复制中断。
# 如：1062错误是指一些主键重复，1032错误是因为主从数据库数据不一致
slave_skip_errors=1062
5. 重启主库开始配置：
1
[root@master ~]# systemctl restart mysqld
1
2
3
4

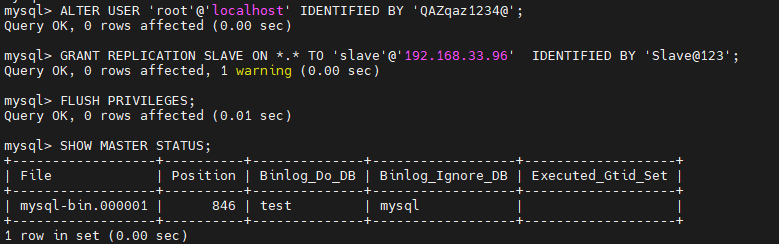

mysql> ALTER USER 'root'@'localhost' IDENTIFIED BY 'QAZqaz1234@';
mysql> GRANT REPLICATION SLAVE ON *.* TO 'slave'@'192.168.33.96' IDENTIFIED BY 'Slave@123';
mysql> FLUSH PRIVILEGES;
mysql> SHOW MASTER STATUS;
6. 创建测试数据：
1
2
3
4
5

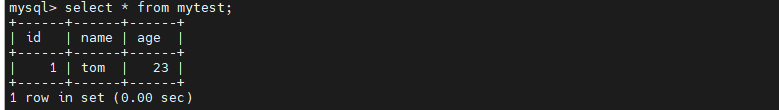

mysql> create database test;
mysql> use test
mysql> create table mytest(id int(10),name varchar(20),age int(10));
mysql> insert into mytest(id,name,age) values (1,'tom',23);
mysql> select * from mytest;
7. 重启从库开始配置：
1
2
3
4
5
6
7
8
9
mysql> ALTER USER 'root'@'localhost' IDENTIFIED BY 'QAZqaz1234@';
mysql> CHANGE MASTER TO MASTER_HOST = '192.168.33.131',
MASTER_PORT = 3306,
MASTER_USER = 'slave',
MASTER_PASSWORD = 'Slave@123',
MASTER_LOG_FILE = 'mysql-bin.000001',
MASTER_LOG_POS = 846;
# MASTER_LOG_FILE = 'mysql-bin.000001'为File
# MASTER_LOG_POS = 846 为Position
8. 开始同步：
1
2
mysql> START SLAVE;
mysql> FLUSH PRIVILEGES;
9. 查看状态：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60

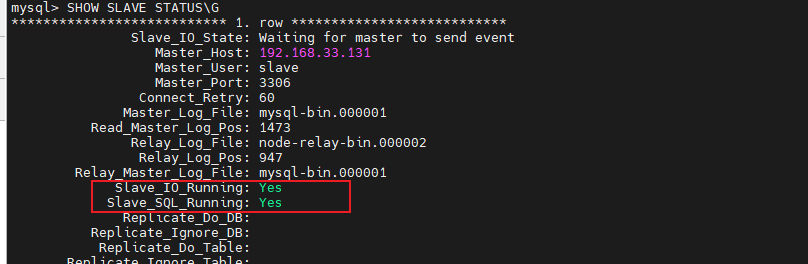

mysql> SHOW SLAVE STATUS\G
*************************** 1. row ***************************
Slave_IO_State: Waiting for master to send event
Master_Host: 192.168.33.131
Master_User: slave
Master_Port: 3306
Connect_Retry: 60
Master_Log_File: mysql-bin.000001
Read_Master_Log_Pos: 1473
Relay_Log_File: node-relay-bin.000002
Relay_Log_Pos: 947
Relay_Master_Log_File: mysql-bin.000001
Slave_IO_Running: Yes
Slave_SQL_Running: Yes
Replicate_Do_DB:
Replicate_Ignore_DB:
Replicate_Do_Table:
Replicate_Ignore_Table:
Replicate_Wild_Do_Table:
Replicate_Wild_Ignore_Table:
Last_Errno: 0
Last_Error:
Skip_Counter: 0
Exec_Master_Log_Pos: 1473
Relay_Log_Space: 1153
Until_Condition: None
Until_Log_File:
Until_Log_Pos: 0
Master_SSL_Allowed: No
Master_SSL_CA_File:
Master_SSL_CA_Path:
Master_SSL_Cert:
Master_SSL_Cipher:
Master_SSL_Key:
Seconds_Behind_Master: 0
Master_SSL_Verify_Server_Cert: No
Last_IO_Errno: 0
Last_IO_Error:
Last_SQL_Errno: 0
Last_SQL_Error:
Replicate_Ignore_Server_Ids:
Master_Server_Id: 146
Master_UUID: 0df2fba7-9bdc-11ee-8241-000c294ec152
Master_Info_File: /var/lib/mysql/master.info
SQL_Delay: 0
SQL_Remaining_Delay: NULL
Slave_SQL_Running_State: Slave has read all relay log; waiting for more updates
Master_Retry_Count: 86400
Master_Bind:
Last_IO_Error_Timestamp:
Last_SQL_Error_Timestamp:
Master_SSL_Crl:
Master_SSL_Crlpath:
Retrieved_Gtid_Set:
Executed_Gtid_Set:
Auto_Position: 0
Replicate_Rewrite_DB:
Channel_Name:
Master_TLS_Version:
1 row in set (0.00 sec)
都显示Yes表示成功
验证数据
在从库查询能查询到主库刚刚创建的数据即成功
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

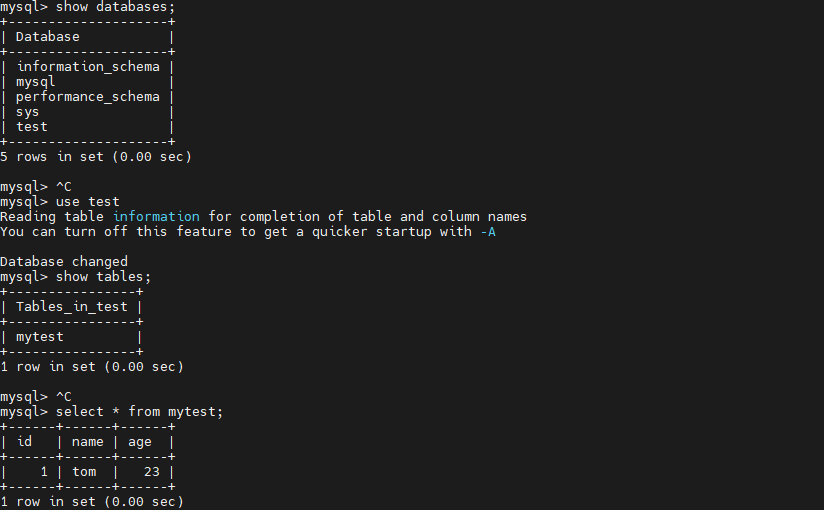

mysql> show databases;
+--------------------+
| Database |
+--------------------+
| information_schema |
| mysql |
| performance_schema |
| sys |
| test |
+--------------------+
5 rows in set (0.00 sec)
mysql> use test
Reading table information for completion of table and column names
You can turn off this feature to get a quicker startup with -A
Database changed
mysql> show tables;
+----------------+
| Tables_in_test |
+----------------+
| mytest |
+----------------+
1 row in set (0.00 sec)
mysql> select * from mytest;
+------+------+------+
| id | name | age |
+------+------+------+
| 1 | tom | 23 |
+------+------+------+
1 row in set (0.00 sec)

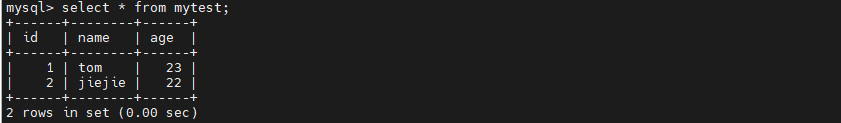

主库增加一条数据：
从库查询：
11. 命令扩展：
1
2
3
mysql> STOP SLAVE; # 停止主从复制
mysql> RESTART SLAVE; # 重启主从复制
mysql> RESET SLAVE; # 重置主从复制状态
